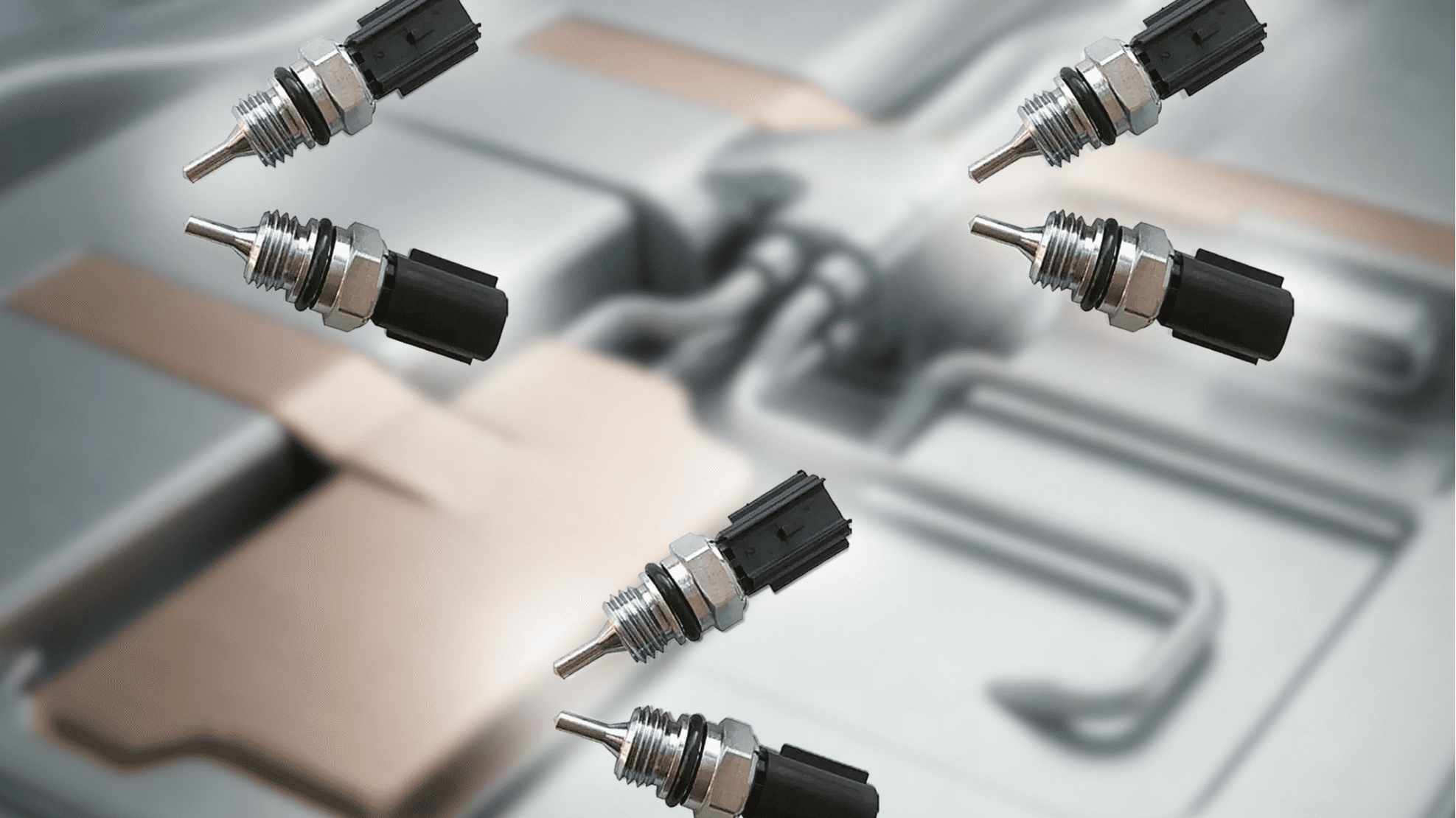

The sensors are lightweight with a compact design, offering IP67 ingress protection and fast response times.
Applications will include the monitoring of battery coolant, HVAC refrigerant, gearbox oil, inverter coolant, fuel cells, etc.
The coolant temperature sensors are USCAR compliant, offered in either a zinc-plated or 1 316L stainless steel housing.
The operating temperature is -40°C to 100°C, and the response time is five seconds within a range of 25°C to 85°C in water.
The resistance at 25°C is 2,828O ± 1.3 per cent and the temperature accuracy is ± 0.3°C.
The connector material is PBT-GF15 and the O-ring material is HNBR.
The connector is USCAR 064 sealed (IP67), per USCAR 064-S-002-1-A02.
The overall length is 48mm with a 12mm screw thread. Mating connectors are Molex 3140X-2100 or Aptiv 54390239.
Inelco Hunter's engineering support provides comprehensive technical backup for every product in the extensive range of products.
Inelco Hunter can also help customers with the design of their application.
The engineering team can help define the project requirements, including as-yet unformed product ideas, turning a concept into an outstanding product.
This added-value support is at the core of Inelco Hunter’s philosophy, and has been for over 30 years.
Find out more here.
