The family has removable end panels for easy machining. It is available with or without a battery compartment for AA or PP3 9V batteries.
The three larger sizes are also available sealed to IP65, or as general-purpose IP54 enclosures but with two end panels.
Key features of the IP54 1553 general-purpose family:
• Five sizes, from 75mm x 50mm x 17mm to 147mm x 89mm x 25mm
• Sealed to IP54
• Moulded in general-purpose ABS
• PCB mounting bosses are moulded into the base
• The three larger sizes are available with or without a battery door and compartment in the base
• The battery compartment versions are supplied complete with clips for 2 x AA and 1 x PP3 batteries
• All sizes are available in black and grey

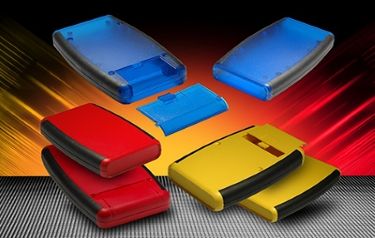

• Two sizes are also available in yellow, translucent blue, and red
• Alternative IR transparent end panels are available for two of the sizes
• Removable front panel for easy machining for components
• The smallest two sizes do not have a battery door or removable panel
• The soft overmoulds are black or grey
• All sizes feature a recessed top cover to accept a display or membrane keyboard
• Optional belt/pocket clips are available in black and grey
Key features of the specialist IP65 1553W version:
• The IP65 watertight versions of the three larger sizes have a single front panel integral with the top cover
• Sealed to IP65
• The 1553W is moulded in flame-retardant, UV-stabilised ABS for use outside
• They do not have a battery compartment
1553T key features
Hammond’s 1553T range is designed for hand-held systems where a screen and keyboard are required.
• Two sizes: display 80mm, keyboard 68mm wide and length 165mm and display 100mm wide, keyboard 86mm wide and 210mm in length
• The smaller size has a battery compartment for two AA or one PP3 9V battery
• The larger size has a battery compartment for four AA or two PP3 9V batteries
• Available with or without a battery compartment
• The battery version has one removable end panel for I/O, the non-battery version has two removable end panels
• Soft over-mould for comfort in use.
• PCB mounting standoffs in the both top and base
• Moulded in black or grey UL94-V0 flame retardant ABS plastic with a soft overmould
Click here for the new Hammond Europe LinkedIn page.
Hammond has just set up a new page on LinkedIn for the benefit of its European distributors and OEM customers. If you would like to be kept up to date with Europe-specific information and news from Hammond, then follow the company and all its latest products, and other information will be available there. Don't delay!
Standard enclosures are cost-effective, field-proven and readily available, but they have to be configured for your application. Hammond’s in-house modification services bring your project to market on time and on budget.
By definition, all standard enclosures will need to be configured to suit a specific application. Hammond has many thousands of standard enclosure designs and sizes and is able to offer modifications for low MOQ.
Using Hammond, the original manufacturer, eliminates the scrap associated with first-offs and prototypes, and ensures that there are no interpretation errors of your design requirements.
Hammond’s in-house capability:
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital flat and embossed printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware: nuts, studs and standoffs
• Custom moulding colours. All ABS, flame retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity
• Custom painted colours: powder coating in either smooth or textured finish
• Custom anodising colours for extruded enclosures subject to a minimum order quantity
Hammond’s distribution network
Hammond's standard enclosures are available from its global network of international catalogue and specialist enclosure distribution partners.
Many of its distributors also provide a local interface between their customers and Hammond for the design, configuration and manufacture of modified standards.
Click here for the contact details of your most convenient European partner.
Contact us
To contact Hammond’s technical sales team about the enclosure requirements for your project, call +44 1256 812812, email the company at uksales@hammfg.com or eusales@hammfg.com. To help you in specifying your requirements, you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond’s products from its website.
