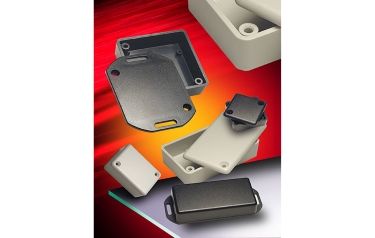

Most versions are moulded in general-purpose ABS, apart from the IP68-sealed 1551W units, which are moulded in polycarbonate for use indoors or outside.
The general-purpose 1551 family
• 18 sizes, from 35mm x 35mm x 15mm to 100mm x 40mm x 20mm
• All sizes available with a plain or flanged lid
• Three sizes available with a keyring fitting as standard
• Sealed to IP54 for general purpose use
• Moulded from ABS
• Plain lid versions available in black, grey or translucent blue
• Flanged lid versions available in black and grey
• Satin texture finish
• PCB stand-offs in the base
The specialist IP68 1551W family
The 1551W IP68 sealed versions are moulded in polycarbonate for use inside or out. All are available with a plain or flanged lid and are available in black and grey with a soft texture finish.
All are fitted with PCB stand-offs in the base and the shaped silicone sealing gasket provides IP68-rated protection against the ingress of dust or water, protecting the housed electronics.
• Five sizes from 60mm x 35mm x 22mm to 100mm x 50mm x 24mm
• All sizes available with a plain or flanged lid
• Sealed to IP68 by preformed silicone gasket
• Moulded from robust UL94 V-0 polycarbonate
• Suitable for outdoor or indoor use
The specialist rectangular and round vented 1551V
The 1551V ventilated units are designed to house sensors and small sub-systems installed in the manufacturing environment.
One of their key features is the snap-fit closure that allows repeated opening and closing without tools and also maximises the internal space for PCBs by eliminating screw fixings to secure the cover to the base.
They feature ventilation slots on all four vertical faces of the cover and wall mounting slots and a 15mm cable knock out in the base.
The rectangular and round versions are also available with solid covers in all sizes.
• All versions are 20mm high
• Three square sizes from 40mm x 40mm to 80mm x 80mm
• One rectangular size: 80mm x 40mm
• Three circular sizes: 45mm, 60mm and 80mm in diameter
• All available in black, grey and white
• Slots in the base for easy wall mounting
• Knock-out in the base for wire entry
• Moulded from ABS
• Snap fit assembly for tool-free access
• Satin texture finish
• PCB stand-offs in the base
The specialist 1551USB and 1551MINI
The 1551USB comes in three sizes with a moulded-in aperture to accept a USB 'A' connector for plugging into a USB port. The 1551MINI follows the same sizes and colour options, but is without the USB aperture.
• All versions are 15mm high
• Three sizes from 35mm x 20mm to 65mm x 30mm
• All available in black, grey, translucent clear, translucent smoke and translucent red
• Label recess in the top cover
• Moulded from ABS
• Satin texture finish
• PCB stand-offs in the base
Click here for the new Hammond Europe LinkedIn page.
Hammond has just set up a new page on LinkedIn for the benefit of its European distributors and OEM customers. If you would like to be kept up to date with Europe-specific information and news from Hammond, then follow the company, and all its latest products and other information will be there. Don't delay!
Standard enclosures are cost-effective, field-proven and readily available, but they have to be configured for your application. Hammond’s in-house modification services bring your project to market on time and on budget.
By definition, all standard enclosures will need to be configured to suit a specific application. Hammond has many thousands of standard enclosure designs and sizes, and Hammond is able to offer modifications for low MOQ.
Using Hammond, the original manufacturer, eliminates the scrap associated with first-offs and prototypes and ensures that there are no interpretation errors of your design requirements.
Hammond’s in-house capability:
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital flat and embossed printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware: nuts, studs and standoffs
• Custom moulding colours. All ABS, flame retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity
• Custom painted colours – powder coating in either smooth or textured finish
• Custom anodising colours for extruded enclosures subject to a minimum order quantity
Hammond has uploaded a new modifications video, click here to view it.
Hammond’s distribution network
Hammond's standard enclosures are available from its global network of international catalogue and specialist enclosure distribution partners. Many of its distributors also provide a local interface between their customers and Hammond for the design, configuration and manufacture of modified standards.
Click here for the contact details of your most convenient European partner.
Contact us
To contact Hammond’s technical sales team about the enclosure requirements for your project, call +44 1256 812812, email the company at uksales@hammfg.com or eusales@hammfg.com. To help you in specifying your requirements, you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond’s products from its website.
