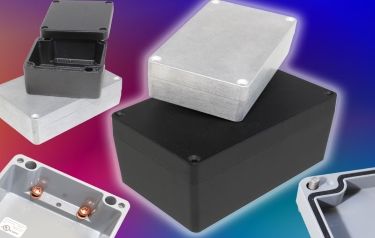

The 1590Z family is an immensely strong, thick-wall enclosure suitable for installation in the most demanding environments. All 25 sizes offer excellent EMC capability and corrosion resistance, enabling the 1590Z to protect the housed electronic, electrical or electromechanical equipment wherever they are installed in an industrial environment or outside.
Sealing to IP68 is achieved through a tongue and groove interface between the lid and base with a user-replaceable one-piece silicone rubber gasket.
Key features of the 1590Z
• 25 sizes in the family, from 50mm x 45mm x 30mm to 400mm x 230mm x 180mm
• All sizes are available in a natural finish or powder-coated inside and out in textured black or smooth grey RAL7001
• All sizes except the smallest 50mm x 45mm x 30mm 1590Z060 have an IEC 62262 impact rating of IK08, confirming protection against 5 Joules of impact by a 25mm diameter striking element, the equivalent to the impact of a 1.7kg mass dropped from 300mm above the impacted surface
• UL and cUL listed
• Certified to NEMA Type 4, 4X, 6, 6P and rated IP68 to IEC 60529
• Wall thicknesses vary from 3.0mm to 5.2mm, depending on the overall size of the enclosure
• Lid depths vary from 5mm to 21mm
• IP68 sealing with a user-replaceable one-piece silicone rubber gasket rated for use from -40°C to +150°C
• The majority of sizes have a mounting shelf in the base, enabling DIN rails or PCBs to be mounted directly into the unit without using stand-offs to provide clearance
• The majority of sizes have multiple holes in the base and lid to accept 6mm ground screws
• 16 of the sizes are available with an optional 1.6mm galvanised steel inner panel
• Captive stainless steel machine screws outside the sealed area secure the lid into tapped holes in the base, allowing repeated access without degrading the sealing
• Easy to secure to any surface using blind holes outside the sealed area
Click here for the new Hammond Europe LinkedIn page.
Hammond has just set up a new page on LinkedIn for the benefit of its European distributors and OEM customers. If you would like to be kept up to date with Europe-specific information and news from Hammond, then follow the company and all its latest product and other information will be there. Don't delay!
Standard enclosures are cost-effective, field-proven and readily available, but they have to be configured for your application. Hammond’s in-house modification services bring your project to market on time and on budget.
By definition, all standard enclosures will need to be configured to suit a specific application. Hammond has many thousands of standard enclosure designs and sizes and the company is able to offer modifications for low MOQ. Using Hammond, the original manufacturer, eliminates the scrap associated with first-offs and prototypes and ensures that there are no interpretation errors of your design requirements.
Hammond’s in-house capability:
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital flat and embossed printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware: nuts, studs and standoffs
• Custom moulding colours. All ABS, flame-retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity
• Custom painted colours - powder coating in either smooth or textured finish
• Custom anodising colours for extruded enclosures subject to a minimum order quantity
Hammond has uploaded a new modifications video, click here to view it.
Hammond’s distribution network
Hammond's standard enclosures are available from its global network of international catalogue and specialist enclosure distribution partners. Many of its distributors also provide a local interface between their customers and Hammond for the design, configuration and manufacture of modified standards.
Click here for the contact details of your most convenient European partner.
Contact Hammond
To contact Hammond’s technical sales team about the enclosure requirements for your project, call +44 1256 812812, email them at uksales@hammfg.com or eusales@hammfg.com. To help you in specifying your requirements, you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all products from Hammond’s website.
