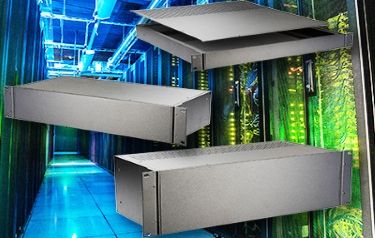

The all-aluminium construction – extruded side and front and rear panels and solid or vented aluminium sheet top and base covers – gives a strong and rigid lightweight enclosure.
A pair of 19" front-rack mount angles is supplied with the full-width 19" versions as standard, as are four feet for desktop use.
Adjustable rear rack mount brackets are available as optional extras for use when the RMU is rack mounted and is housing heavier components.
• 30 sizes with heights of 1U to 5U
• 1, 2 and 3U heights are available in full 19" and half-width versions
• All sizes are suitable for desktop or rack-mountable applications
• All sizes are supplied with four self-adhesive rubber feet for desktop use
• The finish is black textured powder coat
• Full 19" width units are supplied complete with 19" panel mountings as part of the kit
• 19" units are available in five depths of 203mm to 711mm (1U to 4U heights) and the 5U high version in four depths of 330mm to 711mm
• The 1U to 3U half-width versions are available in depths of 108mm and 203mm
• Extruded 3.2mm aluminium sides
• Extruded interchangeable 3.2mm front and rear panels
• 1.6mm aluminium vented or solid top and base covers
• Optional adjustable rear brackets for 19" rack mounting are available as accessories for all heights with depths greater than 457mm
• Optional front panel handles are available for all heights
• Optional tilt and carry handles are available for all heights
The new Hammond Europe LinkedIn page
Hammond has just set up a new page on LinkedIn for the benefit of its European distributors and OEM customers. It's here. If you would like to be kept up to date with Europe-specific information and news from Hammond, then follow the new page and all Hammond’s latest product and other information will be there. Don't delay!
Standard enclosures are cost-effective, field-proven and readily available, but they have to be configured for your application.
Hammond’s in-house modification services bring your project to market on time and on budget.
By definition, all standard enclosures will need to be configured to suit a specific application. Hammond has many thousands of standard enclosure designs and sizes, and Hammond offers modifications for orders as low as 25 units. Using Hammond, the original manufacturer, eliminates scrap and design interpretation of your requirements.
Hammond’s in-house capability:
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital printing
• Silk screen printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware: nuts, studs and standoffs
• Custom aluminium extruded enclosures available in lengths up to one
• Custom moulding colours. All ABS, flame-retardant ABS and polycarbonate enclosures can be moulded in any custom colour, subject to a minimum order quantity
• Custom painted colours – powder coating in either smooth or textured finish
For more information about our modification capabilities, follow this link.
Hammond has uploaded a new modifications video, click here to view it.
Hammond’s distribution network
Hammond's standard enclosures are available from its global network of international catalogue and specialist enclosure distribution partners. Many of Hammond’s distributors also provide a local interface between their customers and Hammond for the design, configuration and manufacture of modified standards.
Click here for the contact details of your most convenient European partner.
Contact Hammond
To contact Hammond’s technical sales team about the enclosure requirements for your project, call +44 1256 812812, email Hammond at uksales@hammfg.com or eusales@hammfg.com. To help you in specifying your requirements, you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond’s products from its website.
