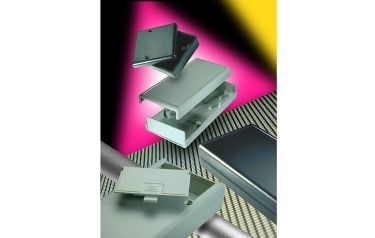

55The 1593 is one of Hammond’s most versatile plastic enclosure families. Moulded from general-purpose ABS, there are versions with two end panels, or one end panel and an integral battery compartment.
The removable end panels are available in four standard versions: plain or contoured plastic panels, IR transparent panels or plain aluminium panels. The versions without a battery compartment are designed to meet IP54.
15 sizes, from 60mm x 105mm x 35mm to 140mm x 66mm x 28mm, are all available in three colours: black, grey or translucent blue. One size, the 1593N, is specifically designed to accept most commercially available card readers.
1593 key features
• Ergonomic design for comfort in use
• 15 sizes: 66mm x 67mm x 28mm to 140mm x 66mm x 28mm
• Recess in the top cover for a membrane keypad
• Nine sizes have two end panels and are designed to meet IP54 sealing
• Five sizes have one end panel and a battery compartment
• Five sizes are supplied complete with a flat and styled plastic end panel
• One size, the 1593J, 66mm x 66mm x 28mm, is without end panels
• The 1593N, 109mm x 74mm x 25mm, is designed to accept card readers from multiple manufacturers
• PCB standoffs moulded into the lid and base
• The 1593AL has nine sizes and flat aluminium panels
• Infra-red transparent plastic panels are available for 12 sizes
• Moulded in general purpose ABS with a satin finish
• Available as standard in grey, black and translucent blue
• Tongue and groove construction gives IP54 sealing on the two end panel versions
• A belt clip is available as an optional extra
Standard enclosures are cost-effective, field-proven and readily available, but they have to be configured for your application.
Hammond’s in-house modification services bring your project to market on time and on budget.
By definition, all standard enclosures will need to be configured to suit a specific application. Hammond has many thousands of standard enclosure designs and sizes, and we offer modifications for orders as low as 25 units.
Using Hammond, the original manufacturer, eliminates scrap and design interpretation of your requirements.
Hammond’s in-house capability:
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital printing
• Silk screen printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware: nuts, studs and standoffs
• Custom aluminium extruded enclosures available in lengths up to 1m
• Custom moulding colours. All ABS, flame retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity
• Custom painted colours – powder coating in either smooth or textured finish
For more information about Hammond’s modification capabilities, follow this link.
Contact Hammond
To contact Hammond’s technical sales team about the enclosure requirements for your project, call +44 1256 812812, email the company uksales@hammfg.com or eusales@hammfg.com. To help you in specifying your requirements, you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond’s products from its website.
