The 1457, 1457-EMI and 1455HD specialised extruded enclosures
In addition to the general-purpose 1455 Series, we manufacture three specialised variants of extruded aluminium enclosures: the watertight 1457 is sealed to IP65; the 1457-EMI provides increased EMC capability for use in electrically noisy environments and the 1455HD gives enhanced heat removal for high power applications.
They all share a number of common features with the 1455 series: they are designed to house single or multiple PCBs, mounted horizontally into internal slots in the body of the case, and they are also suitable for housing any small electronic, electrical or pneumatic systems or components.
The 1455 series has also been extended with the addition of square profiles that give much greater height for mounting multiple PCBs for distributed sub-systems and/or larger electrical and electro-mechanical components.
Another extension to the 1455's capability is the 1455F which features a completely new extrusion with a flat base with integral mounting flanges that extend beyond the body of the unit to facilitate mounting the units to a wall, bulkhead or machine.
The 1457 IP65 sealed family
For applications requiring protection against dust and water, the 1457 range is designed to meet IP65. It is available in 15 sizes from 80mm x 59mm x 31mm to 280mm x 191mm x 68mm with a clear or black finish.
The end panels are die-cast aluminium, available with or without a flange for mounting the enclosure to a surface. A self-adhesive gasket provides the IP65 sealing.
• Sealed to IP65
• 15 sizes: 80mm x 59mm x 31mm to 280mm x 191mm x 68mm
• Clear or black anodised finish as standard
• Die-cast aluminium plain or flanged end panels
• Self-adhesive sealing gaskets
• PCBs mounted horizontally into integral slots
The 1457 EMC-screened versions
For applications needing EMC capability, the 1457-EMI range is available in 15 sizes from 80mm x 59mm x 31mm to 280mm x 191mm x 68mm with a clear anodised or black satin powder coat finish.
The end panels are die-cast aluminium, finished in a black satin powder coat on the external faces.
They are available with or without a flange for mounting the enclosure to a surface. A full perimeter conductive foam/fabric Ni/Cu (nickel/copper) gasket and CPSA (conductive pressure sensitive adhesive) ensure electrical continuity through the enclosure.
• 15 sizes: 80mm x 59mm x 31mm to 280mm x 191mm x 68mm
• Clear anodised or black satin powder coat finish as standard
• Die-cast aluminium plain or flanged end panels
• Self-adhesive EMC sealing gaskets
• PCBs mounted horizontally into integral slots
The 1455HD heat sink versions
The 1455HD family features additional surface area in the extrusion to provide increased heat dissipation compared with the standard 1455. It is designed for applications where high thermal loads are generated by the housed equipment. It is available in four sizes from 120mm x 86mm x 51mm to 160mm x 111mm x 61 mm. Full-length flanges enable the unit to be mounted to a surface if required.
• Four sizes: 120mm x 86mm x 51mm to 160mm x 111mm x 61mm
• Clear or black anodised body and end plates as standard
• Full length removable mounting flanges
• PCBs mounted horizontally into integral slots

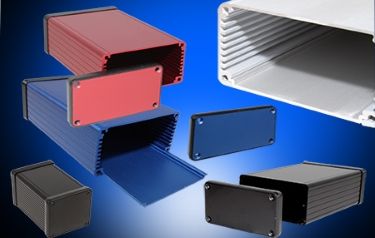

The general-purpose 1455 family
• 38 sizes: 60mm x 45mm x 23mm to 280mm x 191mm x 66mm
• Clear, black, blue or red anodised finish as standard
• Aluminium or plastic end panels
• Single or multiple PCBs mounted horizontally into integral slots
The 1455F flanged variants
• Extruded aluminium construction with integral wall mounting flanges.
• Six sizes: 80mm x 54mm x 23mm to 160mm x 103mm x 53mm
• The mounting flanges are finished with two notches on each side to accept securing screws.
• Completely flat base for effective mounting of the unit to a surface.
• Two removable aluminium end panels.
• Available in a clear or black anodised finish.
• Four alternative horizontal mounting positions for the PCB.
• Designed to house 50mm wide 1.6mm thick PCBs in lengths up to 80 or 120mm.
Hammond's in-house modification services bring your project to market on time and on budget.
All standard enclosures will need to be configured to suit a specific application. We have many thousands of standard enclosures designs and sizes and we offer modifications for orders as low as 25 units. Using us, the original manufacturer, eliminates scrap and design interpretation of your requirements.
Hammond offers:
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking.
• UV digital and silk screen printing.
• Engraving of logos and text in both plastic and metal.
• Pressed in hardware – nuts, studs and standoffs.
• Custom moulding colours. All ABS, flame retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity.
• Custom painted colours – powder coating in either smooth or textured finish
Hammond's distribution network
Hammond's standard enclosures are available from our global network of international catalogue and specialist enclosure distribution partners. Many of its distributors also provide a local interface between their customers and Hammond for the design, configuration and manufacture of modified standards. Click here for the contact details of your most convenient European distribution partner.
Contact Hammond
To contact Hammond's technical sales team about the enclosure requirements for your project, call +44 1256 812812, or email uksales@hammfg.com or eusales@hammfg.com.
To help you specify your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all our products from Hammond's website.
