These extremely versatile enclosures are available in many sizes and are available with plain, flanged lids or flanged bases. The flame-retardant ABS version is by far the most popular option. An economy version of all sizes is also available as standard, moulded in general-purpose ABS.
In the standard UL94 V-0 version the lid is secured with M3 x 10 mm machine screws threaded into integral inserts, perfect for applications when repetitive assembly and disassembly are required.
In economy versions, the lid is secured with self-tapping screws into solid posts to reduce cost when repeated access is not required.
A further option is that selected sizes are moulded in polycarbonate and available in translucent ice blue, crystal-clear and IR-transparent red.
Key features of the 1591 range
• 13 sizes: 85mm x 56mm x 26mm to 190mm x 111mm x 61mm
• Both the flame-retardant and economy versions are available in black or grey
• The internal side walls have moulded-in card guides for vertical 1.6mm PCB mounting
• All sizes are available with plain, flanged lids or flanged bases
• Standard versions are moulded in UL 94-V0 flame-retardant ABS
• Economy versions are moulded in general-purpose ABS
• Tongue and groove construction gives IP54 sealing
• In standard version the lid is secured with M3 x 10 mm machine screws threaded into integral bushes, perfect for applications when repetitive assembly and disassembly are required
• In economy versions the lid is secured with self-tapping screws into solid posts, giving cost savings when repeated access is not required
• Optional adaptors fit into the vertical slots enabling PCBs to be mounted horizontally in a choice of multiple positions within the height of the enclosure
Key features of the 1591XX economy range
• 12 sizes: 86mm x 57mm x 27mm to 221mm x 150mm x 64mm
• Plain internal side walls for horizontal PCB mounting
• PCB mounting bosses moulded into the lid and base
• Available with plain and flanged lids
• Standard black and grey versions are moulded in 94-V0 flame-retardant ABS
• Translucent blue and black economy versions are moulded in general-purpose ABS
• Tongue and groove construction gives IP54 sealing
• In economy versions the lid is secured with self-tapping screws into solid posts, giving cost savings when repeated access is not required
• Optional adaptors fit into the vertical slots enabling PCBs to be mounted horizontally in a choice of multiple positions within the height of the enclosure

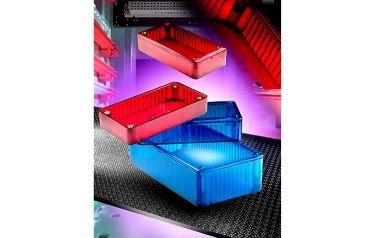

Key features of the 1591T translucent range
• Six sizes: 99mm x 51mm x 24mm to 191mm x 109mm x 61mm
• Internal side walls include card guides for vertical PCB mounting
• Mounting flanges available as an accessory
• Moulded in UL 94-V0 flame-retardant polycarbonate
• Tongue and groove construction gives IP54 sealing
• Available as standard in ice blue, clear and red, which is transparent to infra-red wavelengths
• The lid is secured with M3 x 10mm machine screws threaded into integral bushes, perfect for applications when repetitive assembly and disassembly are required
Hammond's distribution network
Hammond's standard enclosures are available from its global network of international catalogue and specialist enclosure distribution partners. Many of Hammond’s distributors also provide a local interface between their customers and Hammond for the design, configuration and manufacture of modified standards. Click here for the contact details of your most convenient European distribution partner.
Hammond’s in-house modification services bring your project to market on time and on budget.
All standard enclosures will need to be configured to suit a specific application. Hammond has many thousands of standard enclosures designs and sizes and we offer modifications for orders as low as 25 units. Using Hammond, the original manufacturer, eliminates scrap and design interpretation of your requirements.
Hammond offers:
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital and silk screen printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware – nuts, studs and standoffs
• Custom moulding colours. All ABS, flame-retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity
• Custom painted colours – powder coating in either smooth or textured finish
To contact Hammond to discuss a specific requirement, call +44 1256 812812, email the company at uksales@hammondmfg.com or eusales@hammondmfg.com or use Live Chat via its website. To help you specify your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond’s products from its website.
