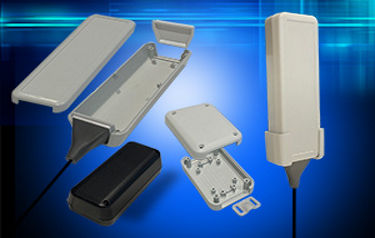

Hammond's 1552 hand-held enclosures are available in six sizes, moulded as standard in black and grey. The IP54 UL94-V0 flame-retardant ABS units feature an ergonomic design that fits comfortably into the hand, enabling it to be used comfortably for long periods in applications such as a machine controller or an electric hoist control.
An optional wall-mounted holder allows the unit to be stored in a convenient location when not in use. It can also be used as a desktop enclosure.
All sizes are 50mm wide and either 22mm or 30mm deep. The three length options are 70mm, 110mm and 150mm.
Key 1552 product attributes
• Moulded from UL94-V0 flame-retardant ABS and sealed to IP54
• The 22mm deep enclosures are a rounded rectangular shape
• The 30mm deep enclosures taper from 50mm at the lid to 38mm at the base for a more comfortable fit in the hand
• Both depths have PCB mounting bosses in the top
• The 30mm deep units have an additional set of mounting bosses in the base
• The maximum width of a PCB mounted on the top is 43.7mm
• The maximum PCB length is 64.5mm in the 70mm long unit, 104mm in the 110mm long version and 144.5mm long in the 150mm long version
• The inside height for the 22mm deep version is 16.2mm; for the 30mm deep version it is 24.2mm
• There are two removable end panels for easy modification
• For wired applications, an alternative end panel with a rubberised cord protector and a strain relief bracket is available
• A recess for a membrane keyboard or display is provided in the top face
• Available in black or grey with a satin texture finish
• PCB standoffs in the top in both depths and the 30mm deep units also have PCB standoffs in the base
• Assembled with four self-tapping colour-coded screws
• Snap closures are fitted to the middle of the four longer sizes to prevent bowing
• A wall holder accessory allows the enclosure to be conveniently stored when not in use
Don’t forget Hammond's in-house modification services to bring your project to market on time and on budget.
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital and silk screen printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware: nuts, studs and standoffs
• Custom moulding colours. All ABS, flame-retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity
• Custom painted colours: powder coating in either smooth or textured finish.
Contact us
To contact Hammond to discuss a specific requirement, call +44 1256 812812, email the company at uksales@hammondmfg.com or eusales@hammondmfg.com or use Live Chat via its website. To help you specify your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond’s products from its website.
