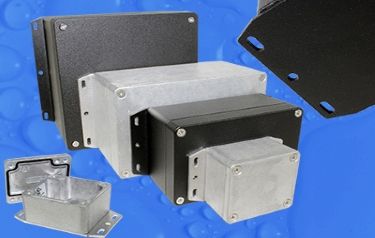

The 1550Z, one of Hammond’s rugged thick wall, heavy duty die-cast enclosure ranges, has been expanded with the introduction of the IP68 UL listed 1550ZF flanged versions of all 18 sizes.
The full-size flange is spot-welded to the base to give a very strong and smooth mounting plate for when the units are secured to a surface. They are available in a natural finish or with a tough polyester black powder finish to both the outside and inside of the enclosure.
The IP68 1550Z features
• 18 sizes from 50mm x 45mm x 30mm to 223mm x 147mm x 83 mm
• The lids (included in the above dimensions) range from 5mm to 33mm in depth depending on the size
• Tongue and groove design with a pre-formed one-piece silicone rubber gasket gives IP68 environmental protection
• UL and cUL Listed
• Independently tested to IP66, IP67, and IP68 and also rated to NEMA Type 4, 4X, 12 and 13
• Depending on the size, the lid is secured with either two, four or six stainless steel Philips machine screws for repeated access without degrading the seal
• The screws are outside the gasketed area and in six of the larger sizes they are self-captivated
• There are clear areas in the painted versions around the grounding points in the lid and base
• All sizes except the smallest have an impact rating of IK08, defined in IEC 62262, giving good mechanical protection
• The additional full-size flanged base plate is spot welded to the main body of the enclosure to give a strong and smooth mounting surface
• The smooth interior without any internal ribs enables easy installation of PCBs and connectors without interference or additional milling
Don’t forget Hammond’s in-house modification services to bring your project to market on time and on budget.
• Precision CNC milling of holes, cut-outs, pockets, tapping and countersinking
• UV digital and silk screen printing
• Engraving of logos and text in both plastic and metal
• Pressed in hardware: nuts, studs and standoffs
• Custom moulding colours. All ABS, flame-retardant ABS and polycarbonate enclosures can be moulded in any custom colour subject to a minimum order quantity
• Custom painted colours – powder coating in either smooth or textured finish
• Custom anodising colours for extruded enclosures subject to a minimum order quantity
To contact Hammond to discuss a specific requirement, call +44 1256 812812, email the company at uksales@hammondmfg.com or eusales@hammondmfg.com or use Live Chat via its website. To help you specify your requirements you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond’s products from its website.
