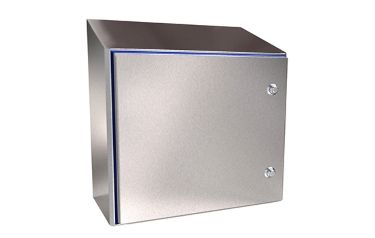

Hammond’s UL and NSF-approved HYW IP69/IP69K 304 stainless steel enclosures have been designed to ensure that they will withstand regular high temperature and high-pressure washdown, and have no areas where contaminants can gather.
If you export your end product to the US, the UL approval is a great benefit. Hammond has now extended its IP69/IP69K product capability with the new HYW wall mount range, available in 18 standard sizes.
Click here for an overview of all Hammond's specialist IP69/IP69K equipment and pushbutton enclosures for hygienic applications.
HYW key features
• 18 sizes from 406mm x 406mm x 203mm to 1219mm x 914mm x 406mm
• Designed to house electrical and/or electronic equipment and protect against harsh environments
• Provides the ultimate environmental protection to IP69/IP69K
• 25° sloped top stops water pooling and provides a potential area for control mounting
• Internal hinge design and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments
• Complies with UL 508A Type 3R, 4, 4X and 12, cUL Type 3R, 4, 4X and 12 standards
• NSF – ANSI 169
• NEMA 3R, 4, 4X, 12 and 13
• IEC 60529 IP66, IP69, IP69K
• Formed and smoothed body in 304 stainless-steel with ground smooth continuously welded seams
• Door stiffeners are provided where required for increased strength and rigidity
• Hygienic 316 stainless steel quarter turn door latches require use of tool for opening to prevent unauthorised access
• Interior hinges provide 105 degree opening and are easily removed to reverse the door swing or improve on-site access
• Hygienic blue silicone gasket mounts around the entire door edge, allowing for efficient cleaning in hygienic environments
• The gasket can be easily removed and re-installed for cleaning or replacement
• Internal alignment guide limits door sag
• Studs provided for mounting an optional inner panel
• Flexible wall mounting alternatives: weld-in-place or stand-offs
• Cover and enclosure body are in natural stainless steel with a smooth #4 dairy finish
To contact Hammond to discuss a specific requirement, call +44 1256 812812, or email the company at uksales@hammondmfg.com or eusales@hammondmfg.com. To help you in specifying your requirements, you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all products from its website.
