The flanges give a completely flat surface for securing the unit to a wall, so there are no joins where dirt could collect and the rigidity of the unit is increased.

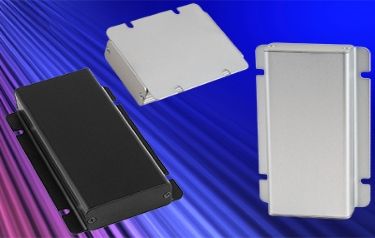

The four new sizes are all available as standard in either clear or black anodised finish and they all have two removable colour-matched flat aluminium end panels.
Originally available in lengths of 80mm and 120mm x 54mm (74mm across the flanges) x 23mm with four slots for mounting 50mm-wide PCBs, the new sizes house 75mm and 100mm-wide PCBs.
The additional sizes are:
120mm and 160mm x 78mm (98mm across the flanges) x 27mm for 75mm-wide PCBs. There are four alternative slot positions for the board mounting.
120mm and 160mm x 103mm (123mm across the flanges) x 53mm high for 100mm-wide PCBs. There are 11 alternative slot positions for the board mounting.
Key product attributes of the new 1455F sizes
• Extruded aluminium construction with integral wall mounting flanges
• Two standard lengths, 120mm and 160mm, for housing 75mm and 100mm-wide 1.6mm thick PCBs. Other lengths up to 1000mm to special order
• Standard clear or black anodised finish, other colours to special order
• The mounting flanges are finished with two notches on each side for securing screws
• Completely flat base for seamless mounting of the unit to a surface
• Two removable aluminium end panels for easy modification
• Four alternative horizontal mounting positions for the PCB in the 27mm high units to allow for different height components
• 11 alternative mounting positions for the PCB in the 53mm high units support multiple PCB sub-assemblies.
To contact Hammond to discuss a specific requirement, call +44 1256 812812, email the company at uksales@hammfg.com or eusales@hammfg.com or use Live Chat via its website. Click on the green "Need Help? Live Chat is Online" banner at the bottom of the page and you will be connected straight away. To help you in specifying your requirements, you can download PDF, AutoCAD .dxf and 3D Solid Model .igs and .stp files for all Hammond's products from its website.
