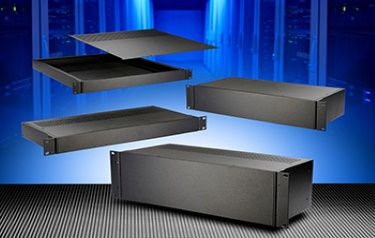

As rack and cabinet footprints continue to expand and electronic packaging densities increase, enclosure real estate is a valuable asset. The new depths enable full advantage to be taken of the space available in 800mm deep cabinets. The RM family of 19” rack mounting and desktop enclosures are available in heights of 1 - 4U and depths of 203, 330, 457, 559 and 711mm.
Adjustable rear panel mounting angles are also available as an accessory for the 457, 559 and 711mm deep versions to give greater support for heavy components. The all-aluminium construction consists of a heavy-duty extruded frame with removable vented or plain top and bottom covers. 19” units are supplied with rack mounting angles. Half width 1 - 3U 108 and 203mm deep versions are also available; both 19” and half width variants come complete with self-adhesive rubber feet for when the enclosure is to be used as a desktop unit. The front and rear panels are removable and interchangeable; their flat design makes machining and printing a simple process. Front panel handles are optionally available to assist with insertion and removal of the 19” units from a cabinet.
The standard finish is durable black powder coat paint. Custom finishes, modified and digitally printed or silk screened front and rear panels and other variants to meet customer specification can be supplied through Hammond’s in-house modification service.
As standard, the RM family is shipped packed flat to minimise shipping costs and to protect against damage in transit.
