New DIRAK Swinghandle cam mounting from FDB panel fittings

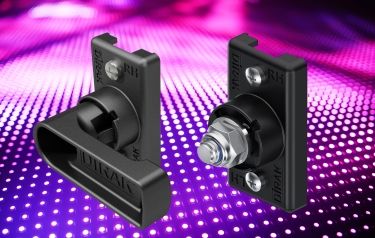

The DIRAK Swinghandle system from FDB Panel Fittings is now enhanced with the introduction of their 3-440 Bearing Plate RS bases.

08/04/2020 10:40:45

These intermediary mounting accessories enable the use of swinghandles with a single point polyamide latching cam or with a standard cam and multi-point rod locking, if required.

Installation is quick and simple with the initial clip attachment to the swinghandle base, then twin-screw fastening for security and sealing.

These internal support plates secure the swinghandle through doors of 1mm up to 3mm thickness and provide 270° limitation with the locking position engaged at 90°.

The “type a” bearing plate incorporates a black polyamide cam, while “type b” uses standard cams or 3-point adapter for connection into a rod closure system.

FDB Panel Fittings and sister company FDB Electrical share their online shopping website at www.fdbonline.co.uk.

Further information on FDB products and services may be found at www.fdb.co.uk.

Find the latest information and news on the FDB blog – www.fdbnews.co.uk, or follow it on twitter: www.twitter.com/fdbpanelfitting – also see www.youtube.com/fdbpanelfittings.
