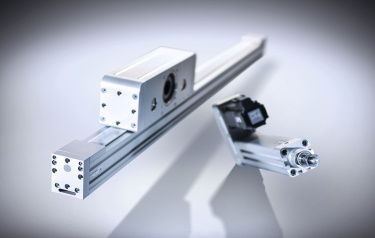

The precision offered by this versatile solution makes it ideal for use in a wide variety of applications including pick and place, dispensing, handling, palletising and loading/unloading systems.
Available in sizes 50, 65 and 80 and with strokes up to 1,500mm, the multi-position vertical system can be easily integrated as the vertical axis of an x-y-z gantry system or cantilever in applications that need to move loads for long strokes quickly; thereby optimising the machine cycle time.
Thanks to a specific pulley system with omega configuration, inertia of the belt driven system is reduced to a minimum. In addition, the presence of one or more recirculating ball guides (HS Version) as well as a special self-supporting square profile, provides high stiffness and resistance to dynamic loads, ensuring a precise and fast conveyance of heavy loads. Series 5V is also available in a version with integrated shock absorbers.
With an operating temperature of -10ºC to +50ºC and storage temperature of -20ºC to +80ºC, the axes have centralized lubrication by means of internal channels and are the latest example of Camozzi Automation’s forward-thinking technological innovation for electrical actuation applications.
