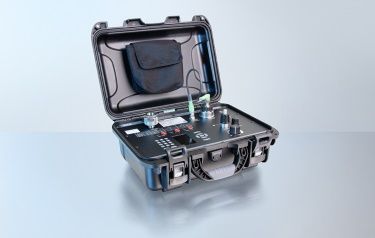

Besides, the new model CPH7650 pressure calibrator – designed within a robust case – is multi-functional: It also fulfils test tasks for the measurement parameters of voltage and current.
As a reference, the CPH7650 uses the proven model CPT6000 sensor with an accuracy of 0.025% FS. The sensor is exchangeable, which increases the versatility of the instrument and optimises recalibration. With the electric pump, users can generate a test pressure of -0.85 bar - +20 bar on site and control it precisely at the touch of a button. The pump power is continuously adjustable.
Like the CPH7000 hand-held model (with mechanical pressure pump), the CPH7650 has an electrical module for measuring voltage (DC 0-30V) and current (4-20mA) as well as supplying power to test items. All pressure and electrical values are simultaneously shown in the display and read via a USB interface.
