Miniature solenoid valve offers high flow, low power & leakage plus long life

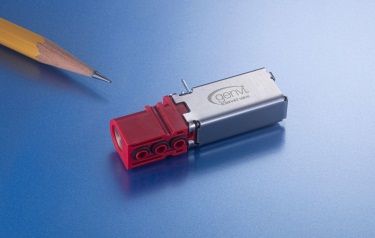

The novel genvi solenoid valve has been designed and manufactured using innovative techniques and represents a range of valves which provide application versatility and reliability at an economical price point.

One of the key objectives in developing the genvi solenoid valve was to challenge the limitations of current fluidic technologies by allowing designers to use a miniature, low power solenoid valve, without compromising system-level flow rate requirements.

As a result, the valve is capable of achieving minimum flow rates of 30 to 40 SLPM at 15psid and its spike and hold profile results in ultra-low power consumption (318mW) during continuous duty operation on air and compatible gas applications. Crucially, this reduces system-level heating and improves battery life making it ideal for applications with challenging power budgets.

In addition to high flow, low power consumption, minimal leakage and extended life of at least 25 million cycles, genvi valves are designed to provide response times of less than 10ms in applications with an operating temperature range from 40ºF to 120ºF.

Typical applications for the valves include molecular diagnostics, oxygen delivery, environmental monitors, compression therapy, breath analysers or wherever high flow and low power cannot be sacrificed for size and reliability.
