Feature

Distance sensors deliver Swiss Precision and reliable results for under £2,000

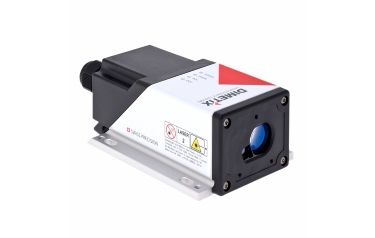

The Dimetix D-Series lasers have repeatability and reliability with a measurement range spanning 0.5m to 500m and maximum outputs rate of 1kHz.

29/04/2019 16:40:20

They are versatile performers in a wide range of applications where there is a need to measure the distance to objects that are static or moving in the line of sight of the sensor.

The sensors have a range of applications from position control and collision prevention of cranes, non-contact measurement in steel processing, to management of vehicles in freight yards or traffic lanes. The sensors can be factory-fitted by machine builders or easily mounted on buildings and plant.

There are five models, which are all 100% tested to choose from to suit your application and budget with accuracy from just +/-0.5mm (1s) and repeatability of +/10.15mm (1s). over the entire 500m range.

The Dimetix D-Series can measure on any natural surface without the need for a reflector plate to distances of 100m. The units are all IP65 rated and have working temperature ranges of -40ºC to +60ºC.

All models feature optional PROFINET, EtherNet/IP, EtherCAT outputs while RS232, RS422, SSI, NPN/PNP and 4-20mA outputs all come as standard. Software enables easy navigation through the intuitive menu enabling easy set-up of the electrical interfaces, digital outputs and measuring rate in order to program parameters to best suit your particular application and requirements.
